The SURFAZO is a “TERRAZZO” ou “GRANITO”, decorative sanded mortar consisting of an epoxy resin binder and a miscelleaneous crushed aggregates for continuous design flooring, resistant and easy to clean.
Designed for classified site no more than U4 - P4.E 2/3 C1
Three components: A-Epoxy resin / B-Hardener / C-Aggregates
The thickness of the flooring will change according to the aggregates sizing:
Aggregates from 0 à 4 mm......
thickness 8 mm
Aggregates from 0 à 6 mm......
thickness 10 mm
Aggregates from 0 à 8 mm......
thickness 12 mm
M ode of application
A temperature > 10C°
Apply SURFAPRIM TR or SURFAPRIM C primer to a thin or smoothed dry floated substrate, sound and free dust (shotblasting,
planed or bush hammering); planimetry 6 mm/ 2 meter, adhesion coefficient > 1.5 MPa,
On a sticky primar and after a blender mixing of components (A, B et C), implementation of the SURFAZO mortar on guides that determine the required thickness (8 to 12 mm),
Soft floating on the surface.
Drying time: a min. of 24 hours are necessary before sanding,
Several passes of sanding will be done with stony grindstones or diamond according to the required grain of surface (soft to high gloss) A finish resin
A finish resin type SURFANET will be applied 15 days after the pouring and the cleaning of the site to ease the maintenance, or a crystallization of the surface will be completed.
A protection will be applied on the SURFAZO for the working time.
C haracterics
Apply the SURFAZO on miscelleaneous substrates without requiring demolition (c/f DTA),
A mechanical preparation and an appropriate primar are required to apply on tiles or stone or concrete coating,
No dust emission,
Fire Classification: Bfl-s1 (CSBT report no RA19-0076 dated on 2019-04-09),
Thickness: variable according to the aggregates size see DESCRIPTION section,
Finish: fine sanding or high gloss,
Inclusion of alu, brass, glass or pearl available,
Emission of COV: class A+ (Low content) (CSTB report SB-12-141),
Rolling wear test (NF P 11-101: 2016): no degradation (CSTB 2019 test),
Impact resistance (Adapted NF ISO 6272): no degradation (CSTB 2019 test),
Stain and chemical products resistance (NF EN 13529 and NF EN 423): very few or barely sensitive (CSTB 2019 test),
Thermal conductivity: suitable to the requirements of the radiant floor heating (CSTB 2019 test),
Ability to get granito or stone finish.
D omain of Application

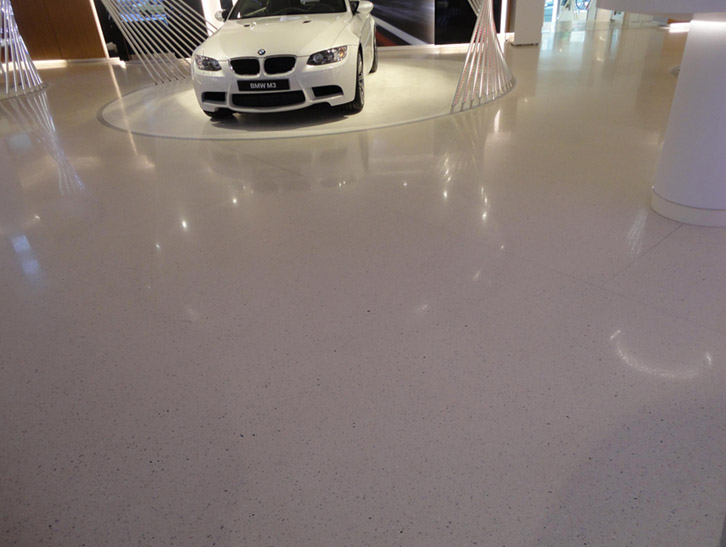

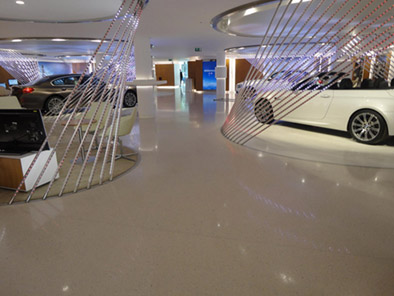

Any decorative floor exposed to pedestrian passage, luggage carts,bucket, forklift... Exemples : airport lounge, train station, exhibition hall, building and store entrances, hospital...
P ackaging
Resin: kit (A+ B) 15 kg
Aggregates + binder: sacks depending on thicknesses and formulation
C olouring
Les compositions et colorations des sols en Compositions and colourings of floors in SURFAZO are unlimited due to various comibinations of resin colours and mix of decorative aggregates.
Same are provided for guidance, but they can in no way be considered to be reference colours binding upon the company LES DURCISSEURS FRANCAIS
H ealth and safety
Keep packaging tightly closed,
Store in a well-ventilated place, temperature > 10°C,
Take the normal precautions for handling a chemical,
Epoxy resin: may have a sensitising effect on the body,
Special hardener: dangerous compound, Aliphatic Polyamine,
Wear gloves and goggles during application,
Do not eat, drink or smoke during application,
Avoid inhalation of fumes.
NB: Safety data sheets are available to each of the components.
The information contained in this leaflet is provided for guidance based on our lnowledge. It does not constitute a waiver of our terms and conditions of sale an shall in no event imply any waranty by us or render us liable with regard to the use of our products. For each project, a study should be jointly conducted with us.
The choice of the thickness of SURFAZO to be applied must take into account the quality of substrate, and the required finish and performance.
